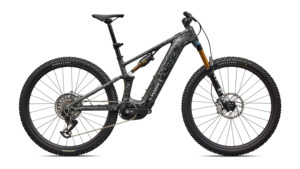

S-Works Turbo Levo R 2026

S2 S3 S4 S5 S6 Crank Length 160mm 160mm 160mm 160mm 160mm Handlebar Width 780mm 780mm 780mm 780mm 780mm Saddle Width 155mm 143mm 143mm 143mm 143mm Seatpost Length 125mm 150mm 200mm 200mm 200mm Stack 607mm 616mm 630mm 644mm 657mm Reach 420mm 450mm 475mm 500mm 525mm Head-Tube Length 100mm 110mm 125mm 140mm 155mm Head-Tube Angle 65° 65° 65° 65° 65° B-B Height (low BB) 339mm 339mm 339mm 339mm 339mm B-B Drop 36mm 36mm 36mm 36mm 36mm Trail 126mm 126mm 126mm 126mm 126mm Fork Length (full) 550mm 550mm 550mm 550mm 550mm Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm Front Centre 736mm 770mm 801mm 833mm 863mm Chainstay Length 447mm 447mm 447mm 447mm 447mm Wheelbase 1181mm 1215mm 1246mm 1277mm 1309mm Top-Tube Length (horizontal) 560mm 592mm 620mm 649mm 677mm Bike Stand-Over Height 763mm 773mm 783mm 793mm 803mm Seat-Tube Length 385mm 405mm 425mm 445mm 465mm Seat-Tube Angle 77° 77° 77° 77° 77° Max Seatpost Insertion 227mm 249mm 271mm 292mm 312mm Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm Saddle Height for Effective ST Angle 690mm 735mm 780mm 825mm 870mm
