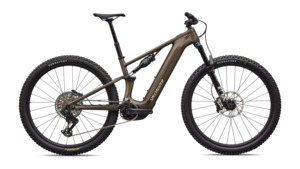

Turbo Levo R Comp 2026

S1 - 27.5 S2 - 29 S3 - 29 S4 - 29 S5 - 29 S6 - 29 Crank Length 160mm 160mm 160mm 160mm 160mm 160mm Handlebar Width 800mm 800mm 800mm 800mm 800mm 800mm Stem Length 50mm 50mm 50mm 50mm 50mm 50mm Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm Seatpost Length 125mm 125mm 150mm 170mm 190mm 190mm Stack 602mm 607mm 616mm 630mm 644mm 657mm Reach 400mm 420mm 450mm 475mm 500mm 525mm Head-Tube Length 95mm 100mm 110mm 125mm 140mm 155mm Head-Tube Angle 64.8° 65° 65° 65° 65° 65° B-B Height (low BB) 339mm 339mm 339mm 339mm 339mm 339mm B-B Drop 36mm 36mm 36mm 36mm 36mm 36mm Trail 128mm 126mm 126mm 126mm 126mm 126mm Fork Length (full) 550mm 550mm 550mm 550mm 550mm 550mm Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm Front Centre 716mm 736mm 770mm 801mm 833mm 863mm Chainstay Length 447mm 447mm 447mm 447mm 447mm 447mm Wheelbase 1160mm 1181mm 1215mm 1246mm 1277mm 1309mm Top-Tube Length (horizontal) 539mm 560mm 592mm 620mm 649mm 677mm Bike Stand-Over Height 761mm 763mm 773mm 783mm 793mm 803mm Seat-Tube Length 375mm 385mm 405mm 425mm 445mm 465mm Seat-Tube Angle 77° 77° 77° 77° 77° 77° Max Seatpost Insertion 292mm 312mm 210mm 227mm 249mm 271mm Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm 80mm Saddle Height for Effective ST Angle 645mm 690mm 735mm 780mm 825mm 870mm
