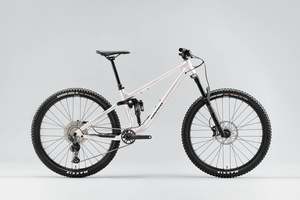

Fluid FS A2 2025

SPOKES/NIPPLES Stainless Steel 14g - Black Geometry

SM MD LG XL 2XL Wheel Size 29" 29" 29" 29" 29" Travel (mm front/mm rear) 140/130 Reach 420 450 480 510 540 Stack 617 626 635 644 653 HTA Head Tube Angle 65 OS Fork Offset 44 ST Seat Tube Length 360 390 410 460 510 STA Effective Seat Tube Angle 76 76.3 76.7 77 77.3 RC Rear Centre Length 425 430 435 440 445 BB Bottom Bracket Drop 30 BBH Bottom Bracket Height 348 HTT Horizontal Top Tube 574 602 630 659 687 WB Wheelbase 1166 1205 1245 1284 1323 SOH Standover 678 690 699 736 767 HT Head Tube Length 110 120 130 140 150 Trail 128 Recommended Seatpost Drop 150 170 200 Maximum Post Insertion 250 270 300 Stem Length 40 Crank Length 175 Tire Size 2.4" – 2.6" Sizing
