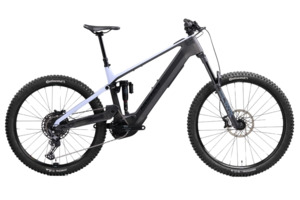

Sight VLT CX C3 150 2025

SZ 2 SZ 3 SZ 4 SZ5 Travel (mm front/mm rear) 29"/27.5" 2 160/150 3 160/150 4 160/150 5 160/150 Reach 29"/27.5" 2 447.5 3 472.5 4 497.5 5 522.5 Stack 29"/27.5" 2 627 3 636 4 645 5 654 Head Tube Angle 29"/27.5" 2 64 3 64 4 64 5 64 Fork Offset 29"/27.5" 2 44 3 44 4 44 5 44 Seat Tube Length 29"/27.5" 2 395 3 415 4 445 5 475 Effective Seat Tube Angle 29"/27.5" 2 77.25 3 77.5 4 77.75 5 78 Rear Centre Length 29"/27.5" 2 432 3 436 4 440 5 444 Rear Centre Length at Sag 29"/27.5" 2 441 3 445 4 449 5 453 Bottom Bracket Drop 29"/27.5" 2 25/5 3 25/5 4 25/5 5 25/5 Bottom Bracket Height 29"/27.5" 2 349 3 349 4 349 5 349 Horizontal Top Tube 29"/27.5" 2 589 3 613 4 637 5 661 Wheelbase 29"/27.5" 2 1222 3 1255 4 1289 5 1322 Standover 29"/27.5" 2 701 3 711 4 714 5 729 Head Tube Length 29"/27.5" 2 115 3 125 4 135 5 145 Trail 29"/27.5" 2 133 3 133 4 133 5 133 Recommended Seatpost Drop 29"/27.5" 2 150 3 170 4 200 5 200 Maximum Post Insertion 29"/27.5" 2 250 3 270 4 300 5 330 Stem Length 29"/27.5" 2 40 3 40 4 40 5 40 Crank Length 29"/27.5" 2 165 3 165 4 165 5 165 Tire Size 29"/27.5" 2 2.35" – 2.6" 3 2.35" – 2.6" 4 2.35" – 2.6" 5 2.35" – 2.6" Water Bottle Compatible 29"/27.5" 2 1 x 620 mL 3 1 x 750 mL 4 1 x 750 mL 5 1 x 750 mL Size
