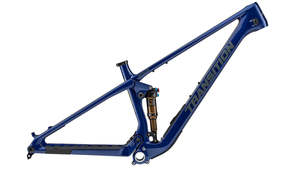

Transition Spur Carbon Frameset

SM MD LG XL A.REACH 430 - 425 460 - 455 485 - 480 510 - 505 B.STACK 608 - 612 617 - 621 626 - 630 640 - 644 C.EFFECTIVE TOPTUBE LENGTH 570 603 631 660 D.SEATTUBE LENGTH 360 390 430 460 E.EFFECTIVE SEATTUBE ANGLE 77.3 - 76.7 76.8 - 76.3 76.4 - 75.9 76.0 - 75.6 SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE 600 660 720 780 ACTUAL SEATTUBE ANGLE 72 - 71.5 72 - 71.5 72 - 71.5 72 - 71.5 F.HEADTUBE LENGTH 100 110 120 135 G.HEADTUBE ANGLE 66.0 - 65.5 66.0 - 65.5 66.0 - 65.5 66.0 - 65.5 H.CHAINSTAY LENGTH 434 - 436 434 - 436 439 - 441 439 - 441 I.WHEELBASE 1163 1197 1231 1262 J.BOTTOM BRACKET DROP (REAR) 40 - 47 40 - 47 40 - 47 40 - 47 K.ESTIMATED BOTTOM BRACKET HEIGHT 335 - 328 335 - 328 335 - 328 335 - 328 STANDOVER HEIGHT 660 660 660 660
