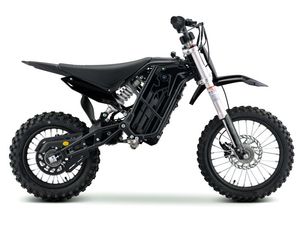

EBOX V3 60 Black

EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand new EBX powertrain! Bigger batteries, a Fardriver 80A controller and a high power PMSM motor with encoder and temperature feedback with up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance. Added to that we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car.

Frame type

V3 Double Cradle Front wheel size

14" Rear wheel size

12" Fork

150mm travel USD Rear Suspension

Progressive mono shock 150mm travel Bar Risers

Alloy Cast 36mm rise Ø22.2 Front brake

Hyraulic Disc (Right lever) e-moto brakes Front disc

180mm rotor, 4 bolt Rear brake

Hyraulic Disc (Left lever) e-moto brakes Rear disc

180mm rotor, 4 bolt Front tyre

60/100-14 Dirt Rear tyre

80/100-12 Dirt Chain

219H 120L Gearing

Front 10T, Rear 70T Max load

85kg Handlebar

6061 T6 EBOX High Rise 1pc Seat

EBOX fat seat Motor

60V EBX PMSM motor with temp feedback and encoder Rated Power

3.3KW Peak power

3.7KW (5hp) Max RPM

7,500 Battery

60v 18.2Ah battery 18,600 cells with QS8 connector and air breaker switch Controller

80 Amp fardriver controller Throttle

SURRON style full twist Display

TFT odometer display with 3 speed modes and fault code analysis software Connectors

Automotive connectors with sealed wiring harness Charger

AC 100-240V, Output: 67.2V, 3A Charge time

5-6 hours Range

21-25 miles (35-40Km) Top speed

45mph (72Km/h) External adjustability

3 riding modes Frame construction

V3 wide frame (183mm), race inspired revised geometry. Increased fork travel, increased pre-load and heavier oil. Standard Footpeg. Wheelbase

980mm Seat height

650mm Warranty

EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
