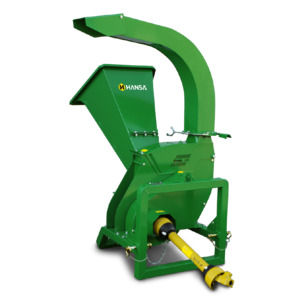

Hansa - C21 PTO Chipper

This world class PTO driven chipper boasts an extremely heavy duty cutting disk with a chipping capacity of 130 mm in diameter enabling it to handle the rigorous needs of the most demanding operator. Simply hitch this chipper to your 540 RPM PTO and you have a machine that has the same capabilities as its engine powered equivalent. Maintenance is effortless with simple access to the knives and belts. Suitable for any tractor from 22 – 55HP.

Max Capacity - 130mm

Driveshaft speed - PTO 540RPM

Tractor Power - 22-55HP/15-40kw

Inlet Chute Size - 200 x 285 mm

Knife Quantity - 2

Knife Size - 200 x 80 x 12 mm

Knife Material - A8 Modified Tool Steel

Cutting Disk Dims. - 650 x 20 mm

Cutting Disk Weight - 80kg

Cutting Disk Speed - 1530RPM

Self-feeding - Yes

Dimensions (l x w x h) - 1395 x 990 x 1945 mm

Weight - 295 kg

Outlet Chute Height - 1945 mm

Outlet Chute Type - 270◦ Swivel
