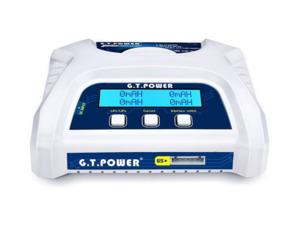

G.T. Power 1-6S 50W Lipo/Life AC/DC Paralell Balance Lipo Battery Charger.

This is This is the new GT Power PD606 Parallel Balance charger ,It is a dual power (mains 100-240V and DC 10-18V) multifunctional parallel charger with built in balancing for LiPo or LiFe packs. It is a very simple charger for balance charging 1 to 6S LiPo or LiFe batteries fitted with a JST-XH balance connector. It is not suitable for other balance plug types unless an adaptor/conversion lead is used.

When charging 3 x 2S packs the charger will 'see' the packs as 6S. We recommend that you only 'parallel' charge packs of the same capacity and ensure that both are able to handle the selected charge rate. Because this connection is PARALLEL, all batteries should be at approximately the same state of discharge when connected to the charger. Due to the parallel arrangement, any small differences in cell voltage will be balanced after the batteries are connected. Feature:

Simple to use

Used for LiPo or LiFe packs (selectable under the non-charging condition)

Auto cell count detect

Auto charge and auto cut-off for safety

Charger temperature protection function

Can be used to check individual cell voltages prior to charging by setting the charge current to 0.0A within 1 minute of connection

Charge rate can be set manually

The interface switch can be used to display individual cell voltages, capacities (mAh) and charge rates

Use it on mains power (100-240AC) or a car battery/PSU (10-18V DC)

Blue backlit LCD screen (2 lines, 16 characters) Specification:

Cell count: LiPo, LiFe: 1 - 6S (series)

Input voltage: AC (mains) 100V~240V 50/60Hz

Input voltage: DC 10-18V or AC to DC adaptor/PSU (AC110/240 to DC 18V/5A)

Maximum charge power: 50W

Maximum discharge power: n/a

Charge current range: 0.1 - 6A in 0.1A steps

Balance circuit: 1-6S Include:

PD606 balance charger

Paralell Charge Balance Board

Paralell Charge Board Lead

Mains input cable with UK plug

DC input cable (fitted with crocodile clips)

Instruction leaflet
