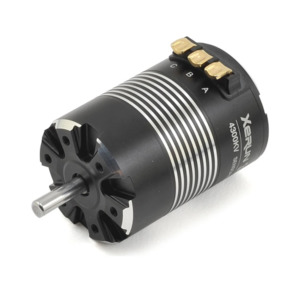

(D) Hobbywing XERUN 3652SD G2 sensored motor (4300KV)

- ROAR approved Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners.
- Built-in chip for making the motor be easily identified by HOBBYWING ESCs. When pairing it with an HW ESC (i.e. XR8 SCT/Plus), the motor can work in the “" mode at all times with great output linearity after the identification. The Turbo timing is allowed to be activated for higher output.
- Magnetic ring mounted on the rotor protects the motor from signal interference and guarantees its super stability in the “" mode.
- With the mechanical timing adjustable from 20 degrees to 40 degrees, users are able to have different output power.
- design implemented by the rotor accelerates the internal air circulation and reduces heat.
- Rebuildable design (partially rebuild-able) and a screw-less motor case for easy routine maintenance effectively prolong the motor life and raise the motor efficiency.
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- New-style “U" solder tabs at the bottom of the motor for easy soldering and wiring. What ?

- 1x Xerun 3652SD motor
- 2x sensor wires (80mm / 120mm)
- 1x pinion gear
- 1 set of factory wires

Download User Manual
