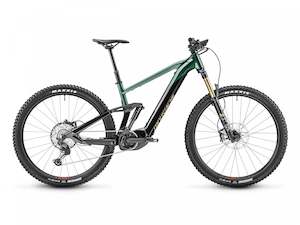

Moustache Trail 9
New design
The playful in nature with its new frame, Bosch Smart System Performance Line CX Motor, and integrated 750Wh PowerTube battery. 150mm of travel, 29″ wheels, 12-speed drivetrains and Shimano 4 piston brakes round out this All-Mountain classic.
Aboard the climbs and descents are tackled with equal enthusiasm. Unanimously praised by the media for its incredible versatility, the Trail 9 has created a new benchmark in balancing playful performance across a range of trails.
The Trail 9 features revised kinematics for a more progressive suspension curve and increased small bump sensitivity. This means more traction everywhere and more bottom out protection on the big hits.
The 150mm travel frame with integrated Bosch PowerTube battery offers a better distribution of mass for a more stable ride and optimised cable routing.
Award winning Moustache Suspension
The Magic Grip Control Shock is one of the main reasons Moustache have won the eMTB of the year award multiple times, as it provides unmatched traction on both climbs and descents. Moustache have matched their own rear shock with a burly Fox 36 Performance Fork.
New Bosch motor and battery
The new Bosch Smart System Performance Line CX Motor is the most powerful motor in Bosch’s range and is designed to offer intuitive power delivery on the trail, giving you the right amount of power for every situation. The compact and light unit has minimal resistance while pedalling and is incredibly efficient, meaning more time on the singletrack between charges! Is it time to take your riding to the next level? If the answer is yes, it’s time to throw your leg over the Trail 9.
Research and Development
Whilst it’s all about having fun with Moustache, they’re deadly serious about their research and development. Their eMTB range features lowest in class centre of gravity. Not satisfied with an off the shelf motor and battery combination, Moustache made their own battery mount that puts the battery within 1.5mm of the motor, and ensures the weight of both the battery and motor are as low on the bike as possible. This was made possible by Moustache’s in house research and development team, who work hand in hand with their production team in Golbey, France.
Key benefits of the :
- The all-new 6061 T4-T6 frame provides the perfect amount of stiffness for a snappy and responsive ride
- Bosch’s Smart System Performance Line CX Motor is efficient, intuitive and nearly silent
- Shimano XT 12spd Drivetrain means you’ll have the right gear for every situation
- Fox’s 36 Factory eBike fork is their top of the range offering
- Moustache’s Magic Grip Control Rear Shock blends comfort, control, and efficiency in all situations Specifications: Frame/Fork/Motor/Battery:
Model :
Frame : Trail, 6061 T4-T6 Alloy, w/150mm travel, Bosch PowerTube battery custom integration (horizontal), 12x148mm, Boost, motor cover w/cooling fins & chainguide
Fork : FOX, Float 36 Factory, E-Bike, GRIP2 w/ HSC/LSC/HSR/LSR, 150mm travel, 15x110mm, Boost, 44mm offset, mini-fender compatible
Rear shock : Moustache, Magic Grip Control 150, specific Air Shock w/ 2-position platform and dynamic control of rebound, Trunion mount, build-in 205x60mm, 150mm travel
Motor : Bosch, Performance Line CX, 250W, Smart System, 85Nm
Battery : Bosch, PowerTube 750Wh, horizontal, Smart System
Battery Range : Up to 127km
Conditions : Calculated on average for a 70kg person under ideal conditions of use
Charger : Bosch, 4Ah
Display : Bosch, Kiox 300, Smart System, compact, color screen, customizable screens, Lock function (optional), 5 modes (Eco, Tour, eMTB, Turbo, Off), “Walk assist", LED Remote bluetooth
Drivetrain/Brakes:
Rear derailleur : Shimano, XT, RD-M8100-SGS, 12-speed
Front cog / Chainring : e thirteen, 34T, Narrow wide, forged Alloy, direct mount fixation
Cassette : Shimano, SLX, CS-M7100 12-speed, 10-51
Chain : Shimano, CN-M6100, 12-speed
Shifters : Shimano, SLX, SL-M7100, 12-speed
Crankset : FSA, forged CNC Alloy, 165mm
Front brake : Shimano, XT BR-M8120, hydraulic disc brake, 4 pistons
Rear brake : Shimano, XT BR-M8120, hydraulic disc brake, 4 pistons
Front rotor : Shimano, 203mm
Rear rotor : Shimano, 203mm
Wheels/Tyres:
Hubs : Front: Moustache by Mavic, 28 holes, Centerlock, 15x110mm thru axle // Rear: Moustache by Mavic, 28 holes, Centerlock, ID360, Microspline 12-speed, 12x148mm thru axle
Rims : Moustache, asymme
