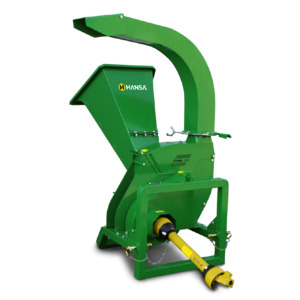

Hansa C21 Chipper PTO

Due to the size and weight of these items, it can be hard to provide an accurate shipping estimate. Please note that shipping may cost extra depending on your location. Please if you would like a shipping quote before purchase.

About the C21 PTO The C21PTO delivers extraordinary self-feeding performance. The large 80kg cutting disc rotates at 1530 RPM creating a self perpetuating inertia. The draft created by the winged cutting disc pulls foliage into the machine fast and effectively through the 200 x 2850 mm infeed opening. The outlet chute height of 1945 mm allows the user to load chip onto a trailer, ute or stockpile.

Increase the capabilities of your tractor with the C21PTO. Suitable for all tractors with 22 to 55 HP and a 540 RPM PTO drive. A low center of gravity ensures a smooth ride when travelling over rough ground with this 295 kg chipper. Supplied with a PTO shaft, hitch the unit to your tractor and reach all those hard to reach locations with ease.

Highlights

- Chipper Capacity 130mm
- Cutting Speed 1530RPM
- Self Feeding
- Swivel Outlet Chute
- Tractor Power from 22-55HP

Features:

- Manual clutch for easy starting.
- Twin belt drive for smooth running and protection against shock load.
- Large in feed chute allows full branches to flow into the machine. No pre-cutting necessary.
- Rotating outlet chute for 360° discharge at 1.9m with deflector. The positive locking system requires no tools.
- Easy access to the knives and the inside of the housing, just by swinging back the outlet chute.
- Quality hyperloc powder-coated finish

Specifications

Engine:

- Driveshaft Speed PTO 540RPM
- Tractor Power 22-55HP

Cutting Equipment:

- Knife Quantity 2
- Knife Size 200 x 80 x 12 mm
- Knife Material A8 Modified Tool Steel
- Cutting Disk Diameter 650 x 20 mm
- Cutting Disk Weight 80kg
- Cutting Disk Speed 1530RPM

Dimensions:

- Dimensions 1395 x 990 x 1945mm
- Outlet Chute Height 195cm
- Inlet Chute Size 200 x 285mm

the range of optional extras here
