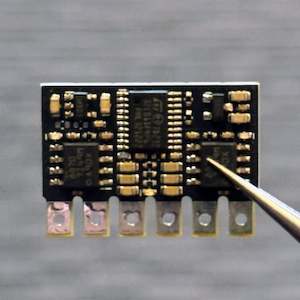

Weka 2A v1.1

WEKA is a compact dual DC-motor ESC: originally designed for combat robots, but is suitable for any application requiring a lightweight durable motor driver.

Developed and tested in Christchurch, New Zealand by Connor Benton. FEATURES

- 2x Bi-Directional DC-motor outputs.
- Status LED's to indicate run mode, fault and calibration.
- Under-voltage, over-current, and over-temperature protections.
- Internal BEC to provide power to the radio reciever.
- Failsafe checks for loss of connection with radio.
- Calibrate function to customise drive mode, channel mapping, and channel inversion.
- Includes a 100nF capacitor across each motor to filter noise and voltage spikes. SPECIFICATIONS

- Dimensions: 24x17x4 mm
- Weight: 3g excluding wires
- Input Voltage: 2-4S LiPo (6.0-16.8V)
- Motor Output - Continuious: 2A per channel
- Motor Output - Peak: 3.6A per channel
- BEC: 5V, 100mA. Designed to power the radio reciever but no servos
- Signal Input: Servo PWM

For more information, usage instructions, and tips for calibrating, please see the official repo for the Weka 2A At:
https://github.com/cb-repo/P034-WEKA-2A
