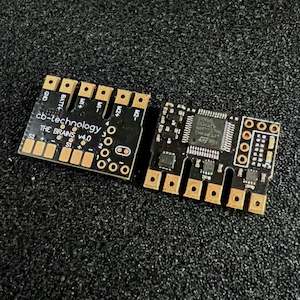

The BRAINS 4.0

THE BRAINS is an compact and lightweight dual DC-motor ESC: originally designed for antweight combat robots, but is suitable for any appliction requiring a lightweight motor driver.

Designed and built in Christchurch, New Zealand by Connor Benton, visit cb-technology for details. Features:

- 2x Bi-Directional DC motor outputs.
- 2x Signal output channels for additional electroncis (BLDC ESC, servo, ).
- Status LED's to indicate run mode, faults and calibration.
- Under-voltage, over-current, over-temperature, and reverse polarity protections.
- Internal BEC to provide power to the radio reciever.
- Failsafe checks for loss of connection with radio.
- Auto-Detection of different radio protocols on the same input.
- Instant brown-out recovery.
- Calibrate function to customise drive mode, channel mapping, and channel inversion.
- Includes a 100nF capacitor across each motor to filter noise and voltage spikes. Specifications

- Dimensions: 25x19x3 mm
- Weight: 2g excluding wires
- Input Voltage - Rated: 2S lipo (6-10.4V)
- Input Voltage - Max: 12.0V
- Motor Output: 2.1A cont (3A peak) per channel
- BEC: 5V, 80mA. Designed to power the radio reciever but no motors or servos
- Signal Input: Servo PWM, PPM, IBUS, SBUS
- Signal Mixing: Onboard signal mixing for TANK/ARCADE drive styles and channel mapping inverting
- Signal Output: Servo PWM

For more details, please see the github repo at:

https://github.com/cb-repo/P001-THE BRAINS
