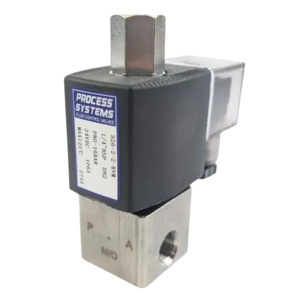

Ketta S26 series 1/4 inch BSP(F) solenoid valve stainless steel direct acting (normally open) -10°C to 100°C 0 to 16 bar

Ketta S26 series 1/4 inch BSP(F) solenoid valve stainless steel direct acting (normally open)
Media temperature range: -10°C to 100°C
Media pressure range: 0 to 16 bar
Ports: 1/4 inch BSP(F)
Orifice diameter: 2 mm
2 way 304 Stainless Steel normally open (power to close) direct acting solenoid valve with a Nylon encapsulated coil
Standard with manual override and LED connector plug (IP65)
Typical applications include general industry, vacuum and some chemicals
Threads conform to IS07/1 sealing threads
The manual override is operated by screwing down the operator through the top of the valve
Coil data: SC-A2, 10 volt amps, 10 watts, Class F Insulation, 100% ED
