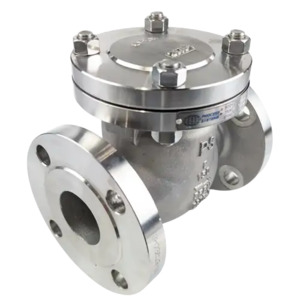

Ketta SCFS series flanged 316 stainless steel swing check valve 20 bar (290 psi) 220°C - all sizes

Ketta SCFS series flanged 316 stainless steel swing check valve
0 to 20 bar (290 psi) max
0 to 220°C max
ANSI 150 flanged stainless steel swing check valve
Allows for a large flow rate and little head loss/pressure drop across the valve due to the full bore design and recess for the disc to sit in when fully open
Designed to BS 1868, flanges according to ASME/ANSI B16.5, face to face according to ASME B16.10, testing and inspection according to API598
Ideally suited for liquid fuels, diesel and oils
