P-22RTM-1900D-1

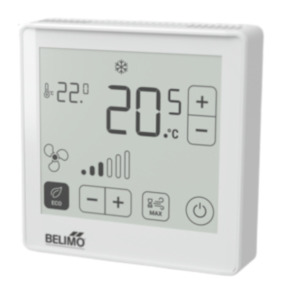

Room Operating Unit CO₂ / Humidity / Temperature active, NFC, 0..5 V, 0..10 V, 2..10 V, MP-Bus, ePaper touch display and LED, PC, white, RAL 9003

Sensor

Voltage AC/DC:
AC/DC 24 V

Electrical Connection:
Terminals

Measured Values:

- CO₂
- Temperature
- Humidity

Output Signal:

- 0..5 V
- 0..10 V
- 2..10 V
- MP-Bus

Measuring Range CO₂:
Default setting: 0..2000 ppm

Measuring Range Humidity:
Default setting: 0..100% RH

Measuring Range Temperature:
0..50°C 32..122°F

Communication:
MP-Bus

Output Voltage Range :

- 2 x 0..5 V, 0..10 V, 2..10 V (Type P-22RT-1900D-1)
- 3 x 0..5 V, 0..10 V, 2..10 V (Type P-22RTH-1900D-1, )

Output Signal Active Note:

- Output 0..5 V, 0..10 V (factory setting), 2..10 V selectable via NFC
- Minimum resistance: 5 kΩ

Display Type:
ePaper touch display and LED
