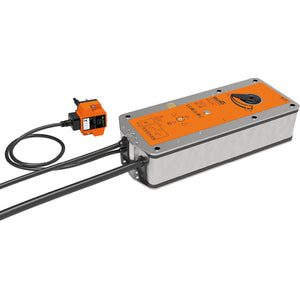

BF24-TN | Fire damper actuator

Fire damper actuator, 18 Nm, AC/DC 24 V, Open/close, 120 s, 2x SPDT, IP54, Cable, Thermoelectric tripping device BAT (72°C)

Actuator

Voltage AC/DC:
AC/DC 24 V

Power Consumption (Running):
7 W

Power Consumption (Holding):
2 W

Power Consumption for Wire Sizing:
10 VA

Auxiliary Switches:
2x SPDT

Connection Supply Control:
Cable 1 m, 2x 0.75 mm² (halogen-free)

Connection Auxiliary Switch:
Cable 1 m, 6x 0.75 mm² (halogen-free)

Torque:
18 Nm

Control Type:
Open/close

Direction of Motion Motor:
Selectable by mounting L/R

Manual Override:
With position stop

Angle of Rotation:
95°

Running Time (Motor):
