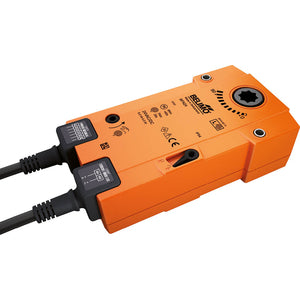

BFN230 | Fire damper actuator

Fire damper actuator, 9 Nm, AC 230 V, Open/close, 60 s, 2x SPDT, IP54, Cable

Actuator

Voltage AC/DC:
AC 230 V

Power Consumption (Running):
4.5 W

Power Consumption (Holding):
2 W

Power Consumption for Wire Sizing:
9 VA

Auxiliary Switches:
2x SPDT

Connection Supply Control:
Cable 1 m, 2x 0.75 mm² (halogen-free)

Connection Auxiliary Switch:
Cable 1 m, 6x 0.75 mm² (halogen-free)

Torque:
9 Nm

Control Type:
Open/close

Direction of Motion Motor:
Selectable by mounting L/R

Manual Override:
With position stop

Angle of Rotation:
95°

Running Time (Motor):
