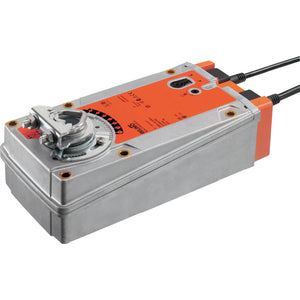

EF24A-S2

Rotary actuator fail-safe, 30 Nm, AC/DC 24 V, Open/close, 75 s, 2x SPDT, IP54 Electrical Actuator

Voltage AC/DC:
AC/DC 24 V

Power consumption (running):
9.5 W

Power consumption (holding):
4.5 W

Power Consumption For Wire Sizing:
16 VA

Auxiliary switches:
2x SPDT

Connection Supply Control:
Cable 1 m, 2x 0.75 mm² (halogen-free)

Connection Auxiliary Switch:
Cable 1 m, 6x 0.75 mm² (halogen-free)

Torque:
30 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable by mounting L/R

Direction of rotation (fail-safe):
Selectable by mounting L/R

Manual override:
By means of hand crank and locking switch

Angle of rotation:
95°

Running time (motor):
75 s / 90°

Running time (fail-safe):
