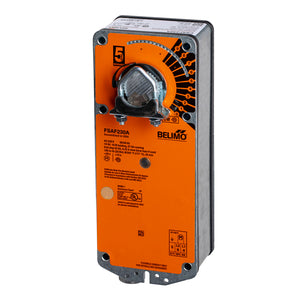

FSAF230A

Fire damper actuator, 20 Nm, Spring return, AC 230 V, Open/close

Specifications

Voltage AC/DC:
AC 230 V

Power Consumption (Running) FS:
37 VA

Power Consumption (Holding) FS:
10 W, 19 VA (60 Hz 12 VA), End stop 54 VA, 0.25 A slow blow fuse

Connection Supply:
3 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector

Torque:
20 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable by ccw/cw mounting

Direction of rotation (fail-safe):
Reversible with cw/ccw mounting

Angle of rotation:
95°

Running time (motor):
25 s / 90°

Running time (fail-safe):
