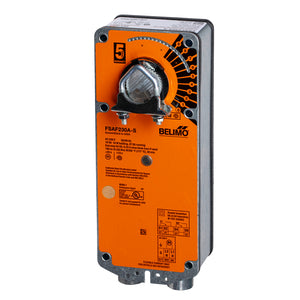

FSAF230A-S

Fire damper actuator, 20 Nm, Spring return, AC 230 V, Open/close, 2x SPST

Specifications

Voltage AC/DC:
AC 230 V

Power Consumption (Running) FS:
37 VA

Power Consumption (Holding) FS:
10 W, 19 VA (60 Hz 12 VA), End stop 54 VA, 0.25 A slow blow fuse

Auxiliary Switches:
2x SPST

Connection Supply:
3 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector

Connection Auxiliary Switch:
Cable 0.9 m, 4x 18 AWG appliance cable with 1/2" NPT conduit connector

Torque:
20 Nm

Control Type:
Open/close

Direction of Motion Motor:
Selectable by ccw/cw mounting

Direction of Rotation (Fail-Safe):
Reversible with cw/ccw mounting

Angle of Rotation:
95°

Running Time (Motor):
25 s / 90°

Running Time (Fail-Safe):
