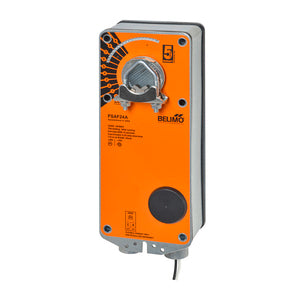

FSAF24A

Fire damper actuator, 20 Nm, Spring return, AC/DC 24 V, Open/close

Voltage AC/DC:
AC/DC 24 V

Power Consumption (Running) FS:
32 VA

Power Consumption (Holding) FS:
5 W, 8.5 VA, End stop 47 VA, 2 A slow blow fuse

Power Consumption For Wire Sizing:
40 VA

Connection Supply:
2 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector

Torque:
20 Nm

Control Type:
Open/close

Direction of Motion Motor:
Selectable by ccw/cw mounting

Direction of Rotation (Fail-Safe):
Reversible with cw/ccw mounting

Angle of Rotation:
95°

Running Time (Motor):
25 s / 90°

Running Time (Fail-Safe):
