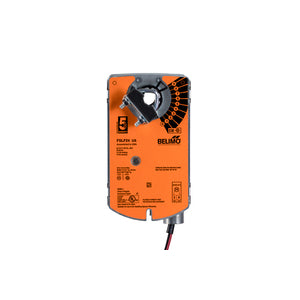

FSLF24 US

Fire damper actuator, 3.5 Nm, Spring return, AC/DC 24 V, Open/close

Voltage AC/DC:
AC/DC 24 V

Power Consumption (Running) FS:
15 VA

Power Consumption (Holding) FS:
2.5 W, 3.5 VA, End stop 25 VA, 1 A slow blow fuse

Power Consumption For Wire Sizing:
24 VA

Connection Supply:
2 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector

Torque:
3.5 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable by ccw/cw mounting

Direction of rotation (fail-safe):
Reversible with cw/ccw mounting

Angle of rotation:
95°

Running time (motor):
15 s / 90°

Running time (fail-safe):
