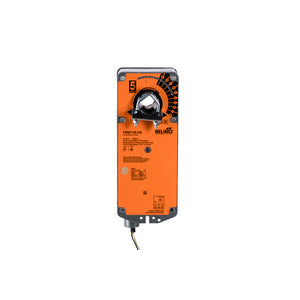

FSNF230 US

Fire damper actuator, 8 Nm, Spring return, AC 230 V, Open/close

Voltage AC/DC:
AC 230 V

Power Consumption (Running) FS:
27 VA

Power Consumption (Holding) FS:
5 W, 9 VA (60 Hz 6.5 VA), End stop 55 VA, 0.25 A slow blow fuse

Connection Supply:
3 Leads 0.9 m, 18 AWG with 1/2" NPT conduit connector

Torque:
8 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable by ccw/cw mounting

Direction of rotation (fail-safe):
Reversible with cw/ccw mounting

Angle of rotation:
95°

Running time (motor):
15 s / 90°

Running time (fail-safe):
15 s

Protection category:
IP40

Degree Of Protection NEMA:
NEMA 1

Enclosure Type:
UL Enclosure Type 1

Ambient Temperature:
0..50°C 32..122°F
