FSTF230-S US

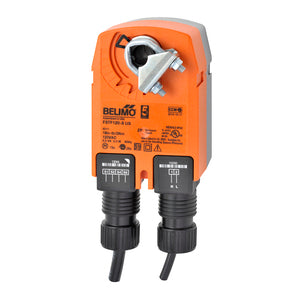

Fire damper actuator, 2 Nm, Spring return, AC 230 V, Open/close, 2x SPST

Voltage AC/DC:
AC 230 V

Power consumption (running):
2.5 W

Power Consumption (Holding) FS:
4.5 VA

Power Consumption For Wire Sizing:
5 VA

Auxiliary switches:
2x SPST

Connection Supply:
Cable 1 m, 2x 18 AWG appliance cable with 1/2" NPT conduit connector

Connection Auxiliary Switch:
Cable 1 m, 6x 18 AWG appliance cable with 1/2" NPT conduit connector

Torque:
2 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable by ccw/cw mounting

Direction of rotation (fail-safe):
Reversible with cw/ccw mounting

Angle of rotation:
95°

Running time (motor):
75 s / 90°

Running time (fail-safe):
