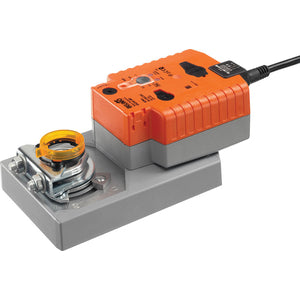

GK24A-1

Rotary actuator fail-safe, 40 Nm, AC/DC 24 V, Open/close, 150 s, IP54

Voltage AC/DC:
AC/DC 24 V

Power consumption (running):
11 W

Power consumption (holding):
3 W

Power Consumption For Wire Sizing:
21 VA

Connection Supply Control:
Cable 1 m, 3x 0.75 mm²

Torque:
40 Nm

Control type:
Open/close

Direction Of Motion Motor:
Selectable with switch 0 (ccw rotation) / 1 (cw rotation)

Direction of rotation (fail-safe):
Selectable with switch 0..100%

Manual override:
With push-button

Angle of rotation:
95°

Running time (motor):
150 s / 90°

Running time (fail-safe):
35 s

Mechanical interface:
Universal shaft clamp reversible 12..26.7 mm

Protection category:
IP54

Degree Of Protection NEMA:
NEMA 2

Enclosure Type:
UL Enclosure Type 2

Ambient Temperature:
-30..50°C -22..122°F
