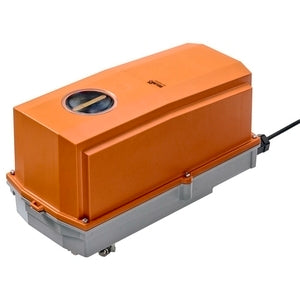

NF24G-SR-L

Rotary actuator fail-safe, 10 Nm, AC/DC 24 V, 2..10 V, 150 s, IP66/67

Temperature Sensor

Voltage AC/DC
AC/DC 24 V

Power consumption (running)
3.5 W

Power consumption (holding)
2.5 W

Power Consumption For Wire Sizing
5.5 VA

Connection Supply Control
Cable 1 m, 4x 0.75 mm² (halogen-free)

Torque
10 Nm

Control type
DC 2..10 V

Direction Of Motion Motor
Selectable with switch L/R

Direction of rotation (fail-safe)
L (ccw)

Manual override
By means of hand crank and locking switch

Angle of rotation
95°

Running time (motor)
150 s / 90°

Running time (fail-safe)
