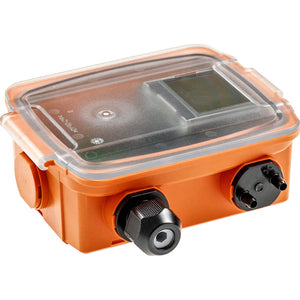

22ADP-164L | Differential pressure sensor Air

Differential pressure sensor Air, -100..2500 Pa, active, BACnet, 0..5 V, 0..10 V, LCD Differential Pressure Sensor

Voltage AC/DC
AC/DC 24 V

Electrical connection
Terminals

Measured values
Differential pressure
Volumetric flow

Output signal
BACnet
0..5 V
0..10 V

Measuring range pressure
-100..2500 Pa
-0.4..10 inch WC

Communication
BACnet MS/TP

Output Voltage Range
2 x 0..5 V, 0..10 V, min. resistance 10 kΩ

Output signal active note
Output 0..5/10 V selectable with switch

Display type
LCD
