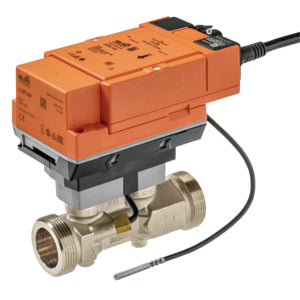

22PE-1UF | Thermal energy meter

Thermal energy meter, AC/DC 24 V, DN 32, 6 m³/h

Flow and Temperature Sensor

Voltage AC/DC
AC/DC 24 V

Electrical Connection
Cable

Measured Values
Flow
Temperature

Output Signal
BACnet
Modbus
MP-Bus
0..10 V

Flow qp
6

Communication
BACnet/IP
BACnet MS/TP
Modbus TCP
Modbus RTU
MP-Bus
Cloud

Output Voltage Range
1 x 0..10 V, 0.5..10 V, 2..10 V

Fluid
Cold and warm water, water with glycol up to max. 60% vol.

Valve Size
32 mm
1 1/4 inch
