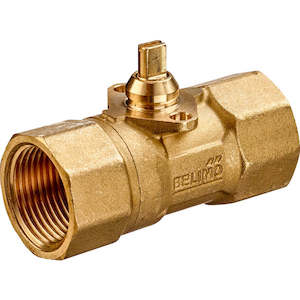

C215Q-J.1 | Zone valve

Zone valve, 2-way, DN 15, Internal thread, Rp 1/2", PN 25, ps 1600 kPa, Kvs 4.8 m³/h, Fluid temperature 2..100°C 36..212°F (with actuator 2..90°C)
Multipack 36 pcs.

Valve Specifications

Pattern:
2-way

kvs:
4.8 m³/h

Fluid:
Cold and warm water, water with glycol up to max. 50% vol.

Fluid Temperature:
2 to 100°C 36 to 212°F
(With actuator: 2 to 90°C)

Close-off Pressure:
520 kPa

Differential Pressure Δpmax:
280 kPa
(50 kPa for low-noise operation)

Flow Characteristic:
Equal percentage

Leakage Rate:
Air-bubble tight, leakage rate A

Pipe Connection:
Internal thread
