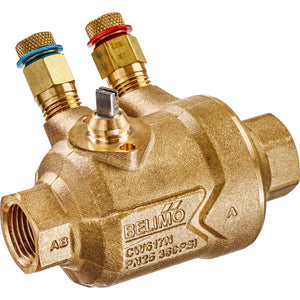

C215QPT-B | PI Zone Valve (PIQCV)

PI Zone Valve (PIQCV), 2-way, DN 15, Internal thread, Rp 1/2", PN 25, ps 1600 kPa, V'nom 210 l/h, Fluid temperature -20..120°C -4..248°F (with actuator 2..90°C), with measuring ports (P/T ports)

Valve Specifications

Pattern:
2-way

Nominal Flow Rate:

- V'nom l/h : 210
- V'nom l/s : 0.058

Fluid:
Cold and warm water, water with glycol up to max. 50% vol.

Fluid Temperature:

- Range: -20 to 120°C -4 to 248°F
- With Actuator: 2 to 90°C

Differential Pressure:
16 to 350 kPa

Close-off Pressure:
1400 kPa

Flow Characteristic:
Equal percentage

Leakage Rate:
Air-bubble tight, leakage rate A

Pipe Connection:
Internal thread
