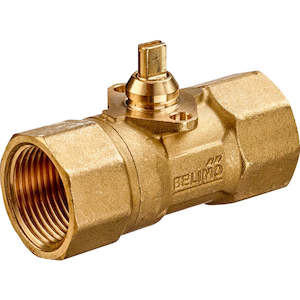

C220Q-K | Zone valve

Zone valve, 2-way, DN 20, Internal thread, Rp 3/4", PN 25, ps 1600 kPa, Kvs 8 m³/h, Fluid temperature 2..100°C 36..212°F (with actuator 2..90°C)

Valve Specifications

Pattern:
2-way

kvs:
8 m³/h

Fluid:
Cold and warm water, water with glycol up to max. 50% vol.

Fluid Temperature:

- Range: 2 to 100°C 36 to 212°F
- With Actuator: 2 to 90°C

Close-off Pressure:
520 kPa

Differential Pressure Δpmax:
280 kPa

- Note: 50 kPa for low-noise operation

Flow Characteristic:
Equal percentage

Leakage Rate:
Air-bubble tight, leakage rate A

Pipe Connection:
Internal thread
