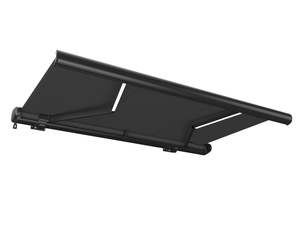

Rainier Full Cassette Motorised Retractable Awning

When the sun gets too bold, you don’t have to retreat indoors. The gives you instant shade with just a tap. Its whisper-quiet motor glides the canopy out effortlessly, creating a cool, inviting space right outside your door. And when not in use? It tucks away into a sleek, full cassette housing—protected, out of sight, and neat.

Crafted from premium French acrylic fabric, this awning is smooth to the touch, durable and available in rich colours. The frame is powder-coated in grey for a premium matte finish and white for a clean glossy finish, perfect for all seasons. Choose from a range of colours and sizes to perfectly suit your space and style. Get shade wherever you need it.

NB: The hand crank is designed for emergency use only when the motor has no power.
Please do not use the hand crank frequently during daily operation, as this may disrupt the motor's programming.
When using the hand crank, stop cranking immediately once the awning is fully retracted. Forcing it further may cause damage to the motor and result in failure to reopen the awning.

Key Features:

- Full Cassette Enclosure – Keeps fabric clean, dry, and fully protected when closed
- Motorised Operation – Open and close smoothly with the press of a button
- Integrated LED Lighting – Warm, built-in lighting for comfortable evenings outdoors
- Adjustable Pitch – Easily tilt the canopy to block low sun or let in more light
- High-quality fabrics – Premium Dickson® Fabric，Fade-resistant, mold-resistant, and easy to keep clean
- Wind Resistant – Stays steady in breezes up to 50 km/h
- UV Protection – Fabric rated UPF 80 for excellent sun blocking
- Easy to Mount – Designed to fit securely on concrete, solid brick, or wood walls
- The remote control can control the telescopic tent within a range of about 20m

Specifications:

- Frame Colour: White / Dark Grey
- Canopy Colour: Dark Grey (Dickson ORC 8203) / Light Grey (Dickson ORC 6088) / Green (Dickson ORC 6687)
- Canopy Fabric: 100% Solution Dyed French Dickson®Acrylic Fabric(>280g/㎡ )
- Frame Material: Powder Coated 6063-T5 Aluminium Steel Roller Tube
- LED Strip: 3000K warm light with adjustable brightness levels
- Lights: Built-in LED light system
- Operation: Remote control and manual
- Water Draining Front Beam
- Awning Arm Dimensions: Small Arm: 52 x 28 x 2.5mm Big Arm: 61 x 33 x 3mm
- Cassette Cover Dimensions: 175 x 155 x 2.5mm
- Roller Tube Diameter: 80mm
- Roller Tube Thickness: 1.2mm
- Frame and Motors Warranty: 5 Years
- Fabric Fade Resistance Warranty: 10 Years
- Front Beam Dimensions: 120 x 64.8 x 2.8mm
- Wind resistance: Up to 50km/h
- Motor Type: Wistar® Motor
- Motor Waterproof Grade: IP44
- Power: 230V / 50Hz
- Power Cable: 1.5m
- Hand Crank Length: 1.5m
- Adjustable angle: 5 - 30 degrees
- Product Dimensions: 300 x 250cm/400 x 250cm/500 x 300cm
- Net Weight: 3m x 2.5m, 53kg/ 4m x 2.5m, 68kg/ 5m x 3m, 84kg
- Packing: One package
- Packaging Dimensions Weight: 3m x 2.5m Package: 345 x 28 x 20cm, 69kg/ 4m x 2.5m Package: 445 x 28 x 22cm, 77kg/ 5m x 3m Package: 549 x 28 x 22cm, 95.5kg

The hand crank and the motor's wiring are on the left side of the awning when you are facing it.

Package Contents:

- 1 x Rainier Full Cassette Retractable Awning
- 1 x Manual Crank
- 1 x Hand Crank Connector
- 1 x Motor Limit Adjusting Rod
- 1 x Remote Control
- 2 x Wall Brackets
- 8 x Expansion Bolts
- 8 x Lag Bolts
- 1 x Instruction Manual
