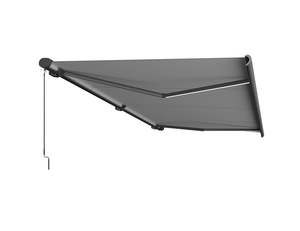

Rainier Pro Full Cassette Motorised Retractable Awning
Our full cassette awning is designed for functionality, style, and longevity. When it’s not in use, your awning can be fully retracted and completely covered to be protected from the elements. A handy remote ensures that you can adjust the canopy to suit your needs at the press of a button.
When retracted, our full cassette awning is sleek and unobtrusive. When fully extended, it provides protection from up to 99% of the sun’s harsh UV rays, as well as the ability to withstand up to 50km/h winds. With LED lights, you’ll be able to comfortably use your awning well into the evening, ensuring that no matter the occasion, you and your loved ones are covered.
NB: The hand crank is designed for emergency use only when the motor has no power.
Please do not use the hand crank frequently during daily operation, as this may disrupt the motor's programming.
When using the hand crank, stop cranking immediately once the awning is fully retracted. Forcing it further may cause damage to the motor and result in failure to reopen the awning.
Features:
- Full cassette cover for canopy protection
- Easy to clean and maintain
- Anti-UV, mildew and fade resistant fabric
- Canopy blocks 95% of light, and 99% of UV rays
- Can be installed on concrete, solid brick, or wood walls
- Up to 50km/h wind resistance
- Fabric UV protection factor 80
- Automatic light-off after awning is retracted
- The remote control can control the telescopic tent within a range of about 20m
Specifications:
- Frame Colour: White / Dark Grey
- Canopy Colour: Dark Grey (Dickson ORC 8203) / Light Grey (Dickson ORC 6088) / Green (Dickson ORC 6687)
- Canopy Fabric: 100% Solution Dyed French Dickson®Acrylic Fabric(>280g/㎡)
- Frame Material: Powder Coated Aluminium Steel Roller Tube
- LED Strip: 3000K warm light with adjustable brightness levels
- Lights: Built-in LED light system
- Operation: Remote control and manual
- Water Draining Front Beam
- Awning Arm Dimensions: Small Arm: 70 x 32 x 2~3mm Big Arm: 75 x 35 x 5~5mm
- Cassette Cover Dimensions: 190 x 165 x 2.5mm
- Roller Tube Diameter: 80mm
- Roller Tube Thickness: 1.2mm
- Front Beam Dimensions: 155 x 86 x 2.2mm
- Motor Type: Wistar® Motor
- Motor Waterproof Grade: IP44
- Frame and Motors Warranty: 5 Years
- Fabric Fade Resistance Warranty: 10 Years
- Power: 230V / 50Hz
- Power Cable: 1.5m
- Adjustable angle: 5 - 30 degrees
- Hand Crank Length: 1.5m
- Product Dimensions: 600 x 300cm
- Packing: One package
- Packaging Dimensions Weight: 6m x 3m Package: 650 x 31.5 x 22cm = 114kg
The hand crank and the motor's wiring are on the left side of the awning when you are facing it.
Package Contents:
- 1x Rainier Pro Full Cassette Retractable Awning
- 1x Instruction Manual
Need Custom? Click Here: Custom Retractable Awning
Click to download: installation manual
Click to download: remote control recode manual
Click to download: living culture VS other brand -fabric roll comparison
