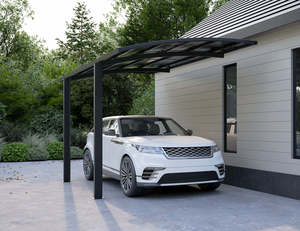

Single Carport 550 x 280 x 316cm
Give your vehicle the protection it deserves with the Living Culture Cantilever Carport. Sleek, modern, and effortlessly stylish, this freestanding design creates a spacious, unobstructed shelter—no clunky poles to dodge while parking. Whether you're shielding your car, boat, or outdoor lounge, this carport blends function with beauty, enhancing your space with its gravity-defying elegance.
Built to withstand the elements, its powder-coated aluminium frame and polycarbonate roof panels offer year-round durability. The heat-protected panels block UV rays, resist fading, and reduce heat buildup, so your vehicle stays cooler even in peak summer. Thoughtfully designed with inbuilt gutters to manage rainwater, it keeps the area below dry and comfortable. With easy installation and the option to extend coverage, it’s more than a carport—it’s year-round peace of mind.
NB: If you need ENGINEERING STRUCTURAL DRAWINGS in your area, please contact sales and we will provide you with a solution. Features
Sleek Cantilever Design – A modern, space-saving structure with no intrusive posts, making parking effortless.
Durable Construction – Crafted from a powder-coated aluminium frame and impact-resistant polycarbonate panels for long-lasting strength.
All-Weather Protection – Withstands winds up to 123 km/h and snow loads up to 64 kg/㎡, ensuring stability in harsh conditions.
UV & Heat Protection – Blocks harmful UV rays while reducing heat buildup, keeping your vehicle cool and protected.
Smart Water Management – Built-in gutters efficiently direct rainwater away, keeping the area underneath dry.
Versatile Use – Ideal for cars, boats, caravans, or shaded outdoor spaces like BBQ and pool areas.
Easy Installation – Designed for straightforward assembly with clear instructions included. Specifications
- Frame Colour Options:
Dark Grey (RAL7016)
White (RAL9016)
- Roof Panel Colour Options:
Dark Grey – Blocks sunlight, reducing infrared heat by 98.5%.
Light Grey – Allows 8% natural light while blocking 100% of UV rays.
- Materials:
Frame Material: Aluminium alloy 6063-T5
Roof Panel Material: 2mmBayerPC Polycarbonate Sheets
Finish: AKZO Powder Coated
- Dimensions:
With Base Plates: 550 x 280 x 316 cm
Embedded Installation: 550 x 280 x 265 cm
- Frame Details:
Post: 162 × 88 mm (thickness 2.6–4.0 mm)
Roof Beam: 116 × 65 × 2.5 mm
Post Height: 261 cm
Arc Top Height: 66 cm
- Wind Resistance: Up to 123 km/h (Level 12 wind)
Snow Load: Up to 64 kg/㎡ (approx. 21.6 cm thickness)
- Package Details:
5 cartons per set
Gross Weight: 187.5 kg
- Warranty:
10 years on the aluminium frame
10 years on polycarbonate roof sheets
Packages: 5 cartons/set, Package Material: Carton
- Package 1 Dimensions (L x W x H): 2873 375 195mm 37kg
- Package 2 Dimensions (L x W x H): 5503 290 175m m 55kg
- Package 3 Dimensions (L x W x H): 818 587 95mm 21.5kg
- Package 4 Dimensions (L x W x H): 661 320 295m m 21kg
- Package 5 Dimensions (L x W x H): 540 540 685m m 44kg
Weight: Gross Weight 178.5kg
Package Contents:
- 1x Cantilever Carport
- 1x Instruction Manual
