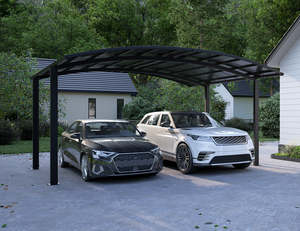

Two Car Double Carport 560 x 550 x 316cm
Protect your car, boat or caravan from wind, rain or snow with a Living Culture Carport.
Constructed using a combination of solid polycarbonate panels and powder-coated aluminium, it is a sturdy and stable structure. While the robust aluminium frame can withstand all weather conditions, ensuring your carport will last you for years to come.
The Living Culture Cantilever Carport is the ideal solution for protecting your vehicle at home or the office, or even providing much needed shade over the pool or BBQ. Securely mount to a concrete drive or patio - you can even fix multiple carports together to create a larger covered space.
NB: If you need ENGINEERING STRUCTURAL DRAWINGS in your area, please contact sales and we will provide you with a solution.
Features:
- Stylish free-standing cantilever design
- Protect your car, caravan, boat or BBQ area
- Strong and durable in harsh weather conditions
- Wind resistance: up to 142.56 km/h (wind level 13)
- Snow resistance: up to 94.8 kg/㎡ (31cm snow thickness)
- Highly effective UV resistant material
- Thermal insulated to reduce heat
- Water, wind, corrosion and fade resistant feature
- Inbuilt gutters direct water flow to help keep the area below dry
- Join multiple carports together to create a larger parking space
- Use as an additional covered parking space or as a patio/balcony cover
NB: All our carports come with a base—rest assured when purchasing.
Specifications:
Colour:
- Color Options 1: Dark Grey (RAL7016) (Aluminum frame) Dark Grey/Light Grey (Polycarbonate panel)
- Color Options 2: White (RAL9016) (Aluminum frame) Dark Grey/Light Grey (Polycarbonate panel)
Material:
- Frame Material: Aluminium alloy 6063-T5
- Roof Panel Material: 2mmBayerPC Polycarbonate Sheets
- Finish: AKZO Powder Coated
- Roof Panel Material: 2mm Bayer PC Polycarbonate Sheets
- Product Dimensions (L x W x H): 560x 550 x 316cm ( Using Carport Base Plates）
- Product Dimensions (L x W x H): 560x 550 x 265cm (Embedded installation ）
- Aluminium Frame Dimensions
- Post: 162 88（thickness：2.6-4.0mm)
- Roof Beam: 116 65 2.5mm
- Post height: 261cm
Packages: 12 cartons/set
Package Dimensions (L x W x H): Package 1 Dimensions (L x W x H): 2873 375 195mm 37kg
Package 2 Dimensions (L x W x H): 5503 290 175mm 55kg
Package 3 Dimensions (L x W x H): 818 587 95mm 21.5kg
Package 4 Dimensions (L x W x H): 661 320 295mm 21kg
Package 5 Dimensions (L x W x H): 540 540 685mm 44kg
Package 6 Dimensions (L x W x H): 2873 375 195mm 37kg
Package 7 Dimensions (L x W x H): 5503 290 175mm 55kg
Package 8 Dimensions (L x W x H): 818 587 95mm 21.5kg
Package 9 Dimensions (L x W x H): 661 320 295mm 21kg
Package 10 Dimensions (L x W x H): 540 540 685mm 44kg
Package 11 Dimensions (L x W x H): 5488 150 110mm 44kg
Package 12 Dimensions (L x W x H): 370 210 250mm 4.5kg
- Gross Weight: 405.5kg
- Package Material: Honeycomb Carton
- 10-year warranty on the aluminium frame
- 10-year warranty on polycarbonate roof sheets
Package Contents:
- 1x Cantilever Carport 2pc
- 1x Instruction Manual
