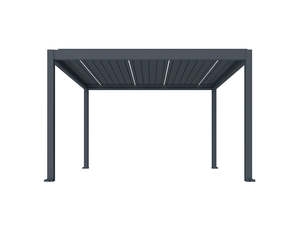

Caribbean Motorised Freestanding Louvre Roof Aluminium Pergola
Step outside and enjoy a space that feels as good as it looks. This pergola combines a modern, simple style with the strength to handle whatever the weather brings. Rain or snow? You don’t need to open the louvres—the unique watertight blade design keeps you covered.
Made from premium 6063-T6 aluminium alloy and coated with AkzoNobel powder, the frame is sturdy, rust-proof, and built to last. The smart app puts full control in your hands—rotate the blades anywhere between 0° and 110°, or set the light strip to warm or cool tones to match the moment.
With its clean lines, ambient lighting, and all-weather durability, this pergola becomes more than shade—it’s your outdoor space redefined, season after season.
Installation: Professional assembly available for guaranteed quality. Email support@livingculture.co.nz for details.
NB: Actual Sizes may differ from those in title - please check line drawings carefully. The standard length of our power cord is 5m
Features:
- Modern and simple style with timeless appeal
- No need to open the louvre when it's raining or snowing
- The frame structure is made of 6063-T6 aluminium alloy, which is bend resistant and never rusts
- Coated with internationally renowned brand AkzoNobel powder: strong adhesion, high colour fastness, and weather resistant
- The column and the sink beam are quick to assemble and sturdy
- Unique blade structure design: water tight, and can withstand extreme weather
- Standard two-colour blade light strip (3000K warm light 6000K white light), stepless dimming, with dimming memory function
- Effortless canopy control at your fingertips — anytime, anywhere via our premium smart app
- The blades can be rotated and opened at any angle within 0 to 110 degrees
- 10-year warranty on structure and 3-year warranty on electric motors
- Allow at least 10cm clearance above the frame for when louvres are fully open
- Height with blades open 2623.5mm
Specifications:
- Colour: Black (RAL9005) / White (RAL9016) / Charcoal (RAL7016) / Frame Charcoal (RAL7016) Louvre White (RAL9016)
- Material：Aluminium alloy 6063-T6
- Blades：193x40x1.6-1.7mm
- Beam with Gutters：185X95X2.5mm
- Posts：120X120X1.5-2.0mm
- Finish：AKZO Powder Coated
- Motor：Grade IP67
- Power Cord: 5m
- 10-year warranty on structure
- 3-year warranty on electric motors
- Light：3000K warm light 6000k white light, stepless dimming
- Tilt Range: 110 Degrees
- Wind resistance: 140-170km/h
- Snow Load: 160 - 170KG/m²（53cm - 56cm thickness）
- Packaging Material: Carton
Package Contents:
- 1 x Caribbean Motorised Aluminium Louvre Pergola
- 1 x Instruction Manual 4 x 4m 5 x 4m 5.9 x 4m 7 x 4m 7.9 x 3.6m LED Stripe 4pcs 5pcs 6pcs 6pcs 6pcs Gross Weight 382.37KG 489.07KG 553.42KG 638.92KG 655KG Package 1 386.3 x 32.8 x 23.2cm, 65kg 245.4 x 38.2 x 23.2cm, 54.62kg 286.3 x 38.2 x 23.2cm, 62.47kg 345.4 x 38 x 23.3cm, 70.87kg 386.4 x 32.8 x 23.2cm, 61.66kg Package 2 394 x 36 x 23.2cm, 63.35kg 386.3 x 22 x 23.2cm, 44.66kg 386.1 x 24 x 23.3cm, 44.68kg 386.5 x 22.1 x 23.3cm, 49.45kg 386.4 x 32.8 x 23.2cm, 63.39kg Package 3 394 x 25.7 x 30.7cm, 66.43kg 394 x 25.7 x 30.7cm, 67.4kg 394 x 25.7 x 30.7cm, 67.59kg 393.9 x 25.3 x 29.8cm, 66.18kg 354 x 25.7 x 30.7cm, 60.78kg Package 4 394 x 25.7 x 30.7cm, 66.43kg 394 x 25.7 x 30.7cm, 66.43kg 394 x 25.7 x 30.7cm, 66.43kg 393.9 x 25.3 x 29.8cm, 66.18kg 354 x 25.7 x 30.7cm, 59.79kg Package 5 394 x 25.7 x 30.7cm, 66.43kg 394 x 25.7 x 30.7cm, 66.43kg 394 x 25.7 x 30.7cm, 66.43kg 393.9 x 25.3 x 29.8cm, 66.18kg 354 x 25.7 x 30.7cm, 59.79kg Package 6 281.3 x 29.4 x 25.9cm, 54.73kg 394 x 25.7 x 30.7cm, 66.43kg 394 x 25.7 x 30.7cm, 66.43kg 393.9 x 25.3 x 29.8cm, 66.18kg 354 x 25.7 x 30.7cm, 59.79kg Package 7 394 x 25.7 x 21.7cm, 45.05kg 394 x 25.7 x 30.7cm, 66.43kg 393.9 x 25.3 x 29.8cm, 66.18kg 354 x 25.7 x 30.7cm, 59.79kg Package 8 281.1 x 32 x 26cm, 59.7kg 393.8 x 27.3 x 19.6cm, 34.91kg 393.9 x 25.3 x 29.8cm, 66.18kg 354 x 25.7 x 30.7cm, 59.79kg Package 9 257.6 x 32 x 14cm, 18.35kg 281.1 x 32 x 26cm, 59.7kg 393.9 x 25.3 x 21.8cm, 45.03kg 354 x 25.7 x 30.7cm, 59.79kg Package 10 257.6 x 32 x 14cm, 18.35kg 281 x 30 x 26cm, 58.12kg 354 x 25.7 x 18.8cm, 31.95kg Package 11 257.5 x 30 x 14cm, 18.37kg 281.1 x 32 x 26cm, 59.7kg Package 12
257.6 x 32 x 14cm, 18.35kg
Click to download: 4x4m installation manual
Click to download: 5x4m, 5.9x4m, 7x4m, 7.9x3.6m installation manual
NOTE: Install must be on a suitable substrate surface. We recommend seeking professional advice before installation. Please ensu
