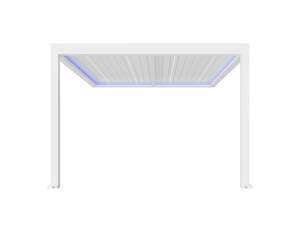

Pacific Motorised Wall Mounted Louvre Roof
Step outside and enjoy comfort in any season. This pergola gives you shade when the sun is high, shelter when the weather turns, and airflow whenever you want it. With smart app control, you can tilt or open the blades from 0–100° at just the right angle, all without leaving your seat.
Made from bend-resistant aluminium alloy and finished with AkzoNobel powder coating, the frame is strong, sleek, and built to last. The watertight louvre design keeps you dry through rain or snow, while the lighting—warm, cool, and vibrant RGB options—sets the mood long after sunset. It’s durable, weather-ready, and designed to make your outdoor space feel like the best part of home.
Installation: Professional assembly available for guaranteed quality. Email support@livingculture.co.nz for details.
Note: Check line drawings for exact dimensions; actual sizes may vary slightly.
Features:
- Modern and simple style with timeless appeal
- No need to open the louvre when it's raining or snowing.
- The frame structure is made of 6063-T6 aluminium alloy, which is bend resistant and never rusts
- Coated with internationally renowned brand AkzoNobel powder: strong adhesion, high colour fastness, and weather resistant
- The column and the sink beam are quick to assemble and sturdy
- Unique blade structure design: water tight, and can withstand extreme weather
- Standard two-colour blade light strip (3000K warm light 6000K white light), stepless dimming, with dimming memory function
- Effortless canopy control at your fingertips — anytime, anywhere via our premium smart app
- The blades can be rotated and opened at any angle within 0 to 100 degrees
- Allow at least 10cm clearance above the frame for when louvres are fully open
- Height with blades open 2983mm
Specifications:
- Colour: Black (RAL9005) / White (RAL9016) / Charcoal (RAL7016) / Frame Charcoal (RAL7016) Louvre White (RAL9016)
- Material：Aluminium alloy 6063-T6
- Blades: 202 x 45 x 1.8-2.0mm
- Beam with Gutters: 210 x 150 x 3mm
- Posts: 150 x 150 x 2.8mm
- Finish：AKZO Powder Coated
- Motor：Grade IP67
- Blade Light：3000K warm light 6000k white light, stepless dimming
- RGB Light：Offering vibrant colors, smart control, seven colors
- Tilt Range: 100 Degrees
- Wind resistance: 170 - 220km/h
- Snow Load: 110 - 310KG/m²（56 - 80cm thickness）
- Packaging Material: Carton
- 10-year warranty on structure and 3-year warranty on electric motors
Package Contents:
- 1x Aluminium Pergola
- 1x Instruction Manual
Click to download: Installation manual
Package Dimensions：
- Package Dimensions (L x W x H) 4.1 x 4.5m : 475kg
- Package Dimensions (L x W x H) 5.1 x 4.5m : 525kg
- Package Dimensions (L x W x H) 6.1 x 4.5m : 627kg
- Package Dimensions (L x W x H) 5.1 x 5m : 680kg
- Package Dimensions (L x W x H) 6.1 x 5m : 767kg
- Package Dimensions (L x W x H) 8.1 x 5m : 952kg
