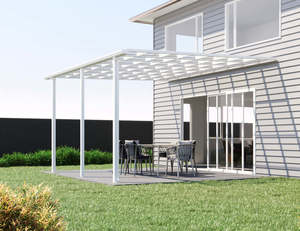

5 X 4m Wall Mounted Patio Cover
Home is where the heart is, and that includes your patio, deck or garden. Create seamless and stylish indoor-outdoor flow your guests will love.
This 5m x 4m wall mounted cover is ideal for extending your living space outdoors, protecting your BBQ area, shelter over the spa, or even as a carport.
Constructed from our zero maintenance powder-coated aluminium, it is designed to be suitable in the harsh New Zealand elements and last for years to come. The elegant grey hue of the frame suits all homes and outdoor spaces. Simply install against a solid wall structure with the help of a handy professional.
Using impact-resistance German designed Bayer® 2mm PC polycarbonate roof shields, the structure helps ward off harsh UV rays, rain or even snowfall. These polycarbonate panels are environmentally friendly and coated with an anti-ultraviolet treatment to help insulate and provide added comfort below. Stronger and safer than acrylic or tempered glass, you can depend on the structure to provide shelter year round adding a perfect spot for socialising with friends and family.
Optimise your outdoor living space with this stylish and functional unit.
Note: This product requires professional installation. Get in touch with our installation team or call 0800 298 398
Features:
- Stylish and functional.
- German designed Bayer® 2mm PC polycarbonate panels.
- Impact resistant, eco-friendly, UV-resistant panels.
- Insulates for added comfort.
- Zero-maintenance aluminium frame.
- Powder-coated treatment.
- Water and corrision resistant.
- Provides protection against sun, rain and snowfall.
- Extends your living space outdoors.
- Socialise outdoors all year round.
- 15-year warranty on the aluminium frame
- 10-year warranty on polycarbonate roof sheets
- Straightforward installation - instructions & accessories included.
Specifications:
- Frame Material: Powder Coated Aluminium Alloy (6063-T5)
- Roof Panel Material: 2mm Bayer® PC Polycarbonate Sheets
- Aluminum Frame Color Option: Coffee / Champagne / Grey / White
- Roof panel Color Option: Bronze / Clear / Lake blue / Light Smoky Grey / Mid Smoky Grey / Dark Smoky Grey
- Frame Thickness: 1mm - 2.2mm
- Wind Load: 120km/h
- Snow Load: 0.2kn/m² (snow thickness: 20cm)
- Roof Panel Temperature Range: -40°C to 120°C
- Roof Panel Sunshine Blockout: 70%
- Roof Panel UV Protection: 99%
- Connector Material: Engineering Plastic
- Waterproof Strip Material: EPDM
- Product Dimensions (L x W x H): 500 x 400 x 285cm
- Package Quantities: 4 Packages
- Package 1: 317 x 32.5 x 27cm; 43.9kg
- Package 2: 406 x 28 x 20.5cm; 42.3kg
- Package 3: 53 x 53 x 78cm; 47.7kg
- Package 4: 33 x 17 x 15.5cm; 2.34kg
- Gross Weight: 136.24KG
- Package Material: Honeycomb Carton
- 10-year warranty on the aluminium frame
- 10-year warranty on polycarbonate roof sheets
Package Contents:
- 1x 5m x 4m Wall Mounted Patio Cover
- 1x Instruction Manual
Click to download: installation manual
