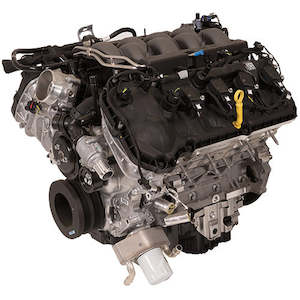

Ford 5.0L GEN 3 Aluminator Crate Engine

Note: This Ford Performance crate engine is a non-stocked item and takes 8-10 weeks to arrive from the Ford Performance warehouse in Dearborn, Michigan. Introduction

The latest Ford Performance 5.0L Coyote "Aluminator" crate engine is the Gen 3 version of the modern 5.0L 32-valve DOHC V-8 that uses advanced features like Twin Independent Variable Camshaft Timing (Ti-VCT) to deliver big power. Unlike the factory 5.0L engine, the "Aluminator" is built with low-compression forged pistons and H-beam connecting rods to meet the demands of forced induction. Specifications

- Fits the 2018-2020 Mustang GT
- 5.0L (302 cubic inches)
- 9.5:1 compression ratio for supercharged applications (nominal) or 12.0:1 compression ratio for N/A applications (nominal)
- Mahle® Hard Anodized forged pistons with Graphal low friction coating
- Manley® H-beam connecting rods with ARP® 2000 bolts
- Mustang GT forged steel crankshaft
- Uses production Mustang GT Gen 3 Coyote aluminium cylinder block
- 10-quart capacity oil pan
- Tuned composite Mustang GT intake manifold with production drive by wire 80 mm throttle body
- Four-valve-per-cylinder aluminium heads with roller-finger followers reduce friction.
- Mustang GT production camshafts
- Includes Ford Performance colder, heat range zero (0) spark plugs for supercharging
- Includes Ford Performance oil filter
- Includes billet steel gerotor oil pump gears
- Vehicle harness and PCM are not included. Use Ford Performance wiring, PCM and installation kit designed for street rod/project car installation. Can also be with automatic transmission controls pack
- Does not include alternator, for alternator kit
- Engine mount bosses and bell housing mount patterns common to 4.6L modular engines.
- NOTE: Due to the 9.5:1 compression ratio, custom tuning is required for optimum performance
- Does not include exhaust manifolds
