2020 Aluminum Extrusion - T Slot

2020 (20mm x 20mm Square) Aluminum Extrusion - T Slot Profile. $9/m

Compact, lightweight structural aluminum extrusion ideal for small frames, CNC builds, 3D printers, enclosures, jigs and light-duty structural assemblies. Specifications

Profile Size: 20mm x 20mm

Material Grade: 6063-T5

Weight: 0.47 kg/m

Wall Thickness: 1.5mm

Slot Type: Standard 6mm T-slot (suits M4 / M5 hardware)

Finish: Mill finish

Supplied with protective adhesive wrapping

- Large profile suitable for load bearing applications or spanning long distances with minimal deflection / torsion under loading.
- Straight, dimensionally stable and durable for harsh environments.
- T slots / connector brackets can be supplied separately - great for mounting HGR rails / general hardware.

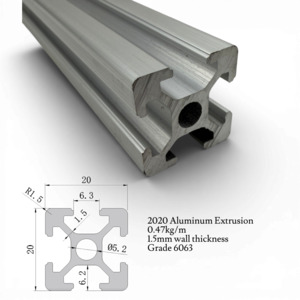

- Requires hole tapping for end screw connections - see cross section drawing.
- Comes in adhesive plastic wrapping.

Shipping available up to maximum length of 2400mm, otherwise please reach out for a shipping quote for longer lengths. Alternatively pick-up / delivery in Auckland available for 3000mm lengths.

Custom orders available - welcome to reach out
