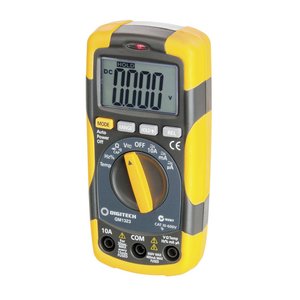

Cat III Multimeter with Temperature

This Cat III 600V digital multimeter provides accurate electrical measurement including voltage, current, resistance, capacitance, frequency and temperature, making it ideal for classroom, workshop and general electrical testing applications.

Key Features

- Safety rated Cat III 600V
- 4000 count LCD display
- Basic DC voltage accuracy of 0.5%
- Measures AC and DC voltage up to 600V
- Measures AC and DC current up to 10A
- Capacitance, resistance and frequency measurement
- Temperature measurement using included K-type thermocouple
- Data hold and relative measurement functions
- Compact, lightweight design with rugged moulded case
- Supplied with woven nylon pouch, test leads and probe

Specifications

- Display: 4000 count LCD (55mm x 25mm)
- Input Impedance: 10 MΩ
- Safety Rating: Cat III 600V
- DC Voltage Accuracy: ±0.5%
- AC Voltage Accuracy: ±1.2%
- DC Current Accuracy: ±2.5%
- AC Current Accuracy: ±3.0%
- Resistance Accuracy: ±1.2%
- Capacitance Accuracy: ±3.0%
- Frequency Accuracy: ±1.5%
- Temperature Range: -20°C to 760°C
- Thermocouple: K-type with woven Teflon lead (900mm)
- Power Supply: 1 x 9V battery (internal, clip and screw compartment)
- Dimensions: 138mm (H) x 68mm (W) x 37mm (D)
- Weight: 230g (approx.)
