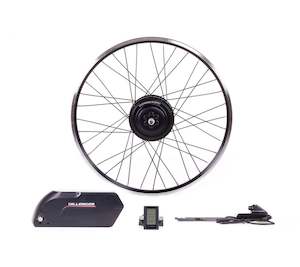

Premium Offroad Electric Bike Kit
- Motorwheel
- Battery
- Controller / Battery Cradle
- Battery Charger
- LCD Handlebar Display with control panel
- Thumb Throttle
- RPAS
- E-Brake Sensors
- 4 to 1 Wiring Harness
- Plastic Wiring Loom/Sleeve
- Cable Ties (10)
- "C" Washers (2)
Motor Fitment
We recommend measuring the distance between your rear fork's dropouts and making you sure you have the require 135mm of space needed for the Dillenger hub. The motor is only compatible with a threaded freewheel, not a splined cassette. P lease ensure you order a freewheel with your kit if you don't have one ready to go. For full fitment requirements see Will This Kit Fit My Bike? Battery Fitment
The Dillenger Premium 48V Battery case and cradle typically installs onto your drink bottle mounts along the top surface of your down tube. Its measurements are: 37.7cm long x 7.8cm wide x 13.2cm high.
Will this battery fit my bike? Print out a scale drawing from here.
If your frame is too small, there are other options for battery installation including rear rack installation using rear rack such as this one here. Manual
