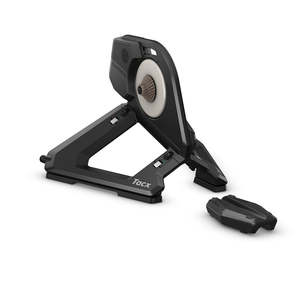

Tacx NEO 3M Smart Trainer

TRAINING IS LIFE

Tacx® NEO 3M is a powerful direct-drive smart trainer with built-in multidirectional movement and a state-of-the-art NEO magnet motor for the most realistic indoor ride.

To get you going Domestique also Include:

- Delivery / Setup

MULTIDIRECTIONAL MOVEMENT
The new built-in motion plates give you a more comfortable and realistic riding feel — plus you can toggle them on and off as desired.

TRAIN ON DIFFERENT SURFACES
The NEO 3M smart trainer features the innovative Tacx® virtual flywheel, which simulates the feeling of riding on different road types, such as cobblestone and gravel, so you can train for a variety of surfaces.

SEAMLESS APP INTEGRATION
Connect with popular training apps such as the Tacx Training™ app, TrainerRoad and Zwift, then automatically upload your ride data to the Garmin Connect™ smart-device app.

INCLINES
Get your legs ready to crush the toughest climbs by training on realistically simulated inclines up to a 25% gradient, and experience descent simulation.

IMPROVED POWER ACCURACY
Track your performance and progress with reliable, consistent measurements, including power, speed and cadence, with accuracy to within 1% across a broader range of power outputs.

SPRINT-READY DESIGN
Get maximum stability, even during explosive sprints, up to 2200 watts. With 32 integrated neodymium magnets, this trainer allows for a high brake force and high power levels. FEATURES

Connectivity:

- WIRELESS COMMUNICATION - ANT connectivity, Bluetooth wireless technology
- TACX SMART NETWORK ADAPTER COMPATIBILITY - Yes (provides Wi-Fi® and Ethernet connectivity option)
- CONTROL BY - Smartphone, tablet, ANT bike computers, stand alone, computer connection via ANT antenna
- READ OUT ON - Smartphone, tablet, bike computer, compatible smartwatch, computer with ANT antenna
- CONNECTION INDICATOR (ANT /BLUETOOTH) - Multicolour LED
- POWER INDICATOR - Multicolour LED, spot on floor

Indoor Training Features:

- MAGNETS - 32 neodymium magnets
- ELECTRICAL REQUIREMENT - 100-240 VAC 50/60Hz (with integrated power adapter)

Compatible Cassettes:

- Shimano/SRAM 9 to 11 speed (compatible, 11-speed cassette included)
- Campagnolo (compatible, requires special cassette body)
- SRAM 12 speed/XDR (compatible, requires special cassette body)
- Shimano 12-speed Hyperglide

Compatible Axles:

- Direct Drive quick release axle (130 mm/135 mm X 5 mm) for bikes with quick release axle
- Thru axle end caps (142 mm/148 mm X 12 mm) for bikes with thru-axle
- For bike dimensions outside of the industry standard, Garmin offers this adapter set as an additional accessory: 135 mm Thru-Axle Adapter Set 10 x 135 Non-drive Side (NDS), 12 x 135 NDS and 10 x 135 Drive-side (DS). SPECIFICATIONS

DIMENSIONS: 630 x 800 mm (24.8″ x 31.5″)
HEIGHT: 595 mm (23.4″)
DIMENSIONS WHEN FOLDED: 695 x 355 mm (27.4″ x 14.0″)
WEIGHT: 23.6 kg

MAX POWER: 2200 Watt
MAX INCLINE: 25%
SIMULATION OF DESCENT: Yes
MAX TORQUE: 88 Nm
MAX BRAKE FORCE: 260 N
FLYWHEEL: Virtual
MASS INERTIA: Variable to 125 kg
CALIBRATION: No calibration needed
OUTPUT: Speed, cadence, power
ACCURACY
