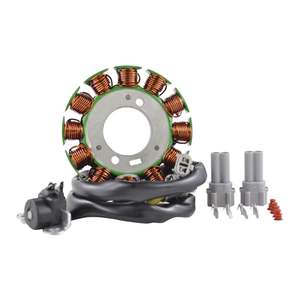

Generator Stator for Yamaha WR250F '05 - '13

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.
- Connector included.
- Rubber grommet included.
- All products shipped are tested.

Specifications:

Di mensions

- Interior Diameter: 30mm
- Exterior Diameter: 84mm
- Thickness: 9mm
- Stator to Grommet: 110mm
- Grommet to Plug: 545mm
- Pickup Coil to Grommet: 90mm

Other Specifications

- Number of Wires: 4
- Number of Plugs: 2

Resistance Values

- Alternator (Yellow to White): 0.4 Ω ±20%
- Pickup (Pink to White): 280 Ω ±20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
