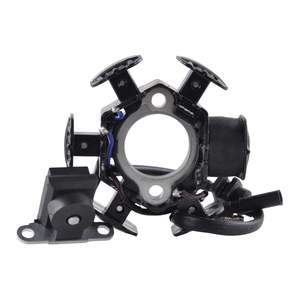

Stator for Honda CRF50F / XR50R / Z50R / XR70R '88 - '24

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included.
- Connector included.
- Rubber grommet included.
- All products shipped are tested.

Technical Data

Dimensions:

- Interior diameter: 29 mm
- Exterior diameter: 83 mm
- Thickness: 9 mm
- Length of wires stator to grommet: 40 mm
- Length of wires grommet to plug: 130 mm
- Length of pickup coil's wire to grommet: 60 mm

Other specifications:

- Number of wires: 2
- Number of plugs: 2
- Number of pins: 2

Wire-to-wire resistance:

- Pickup: Blue/Yellow to Bracket = 120 ohms -20%
- Source: Black/Red to Ground = 715 ohms -20
