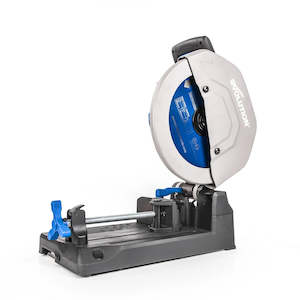

Evolution S355CPS Steel Cut Saw

Description:

The S355CPS Metal Cutting Chop Saw is ideal for making accurate cuts in box section, angle iron, pipe, & plate. With a powerful 2,200W motor and our advanced Metal Cutting TCT blade it cuts much faster than competing saws of similar size, saving you time and energy, and allowing you to move onto your next workpiece at lightning speed.

Features:

Powerful 2,200W motor for fast, clean cuts.
Accurate & durable cast steel vice with 0° - 45° mitre capacity & locking pin.
Precise, accurate cuts that require no clean up for welding.
Reliable construction, heavy-duty cast aluminium base with integrated wear plate & bench mounting holes.
Quick-release vice with robust square-threaded rod for fast & secure clamping.
Compact design with a head lock down pin & carry handle for easy transportation.
Chip collection tray for a cleaner, safer working environment.
Ergonomic, ambidextrous trigger with comfortable textured grip.
Attachable ‘v’ shape block included for secure clamping of round & square tube.
Easy blade change with integrated tool storage.

Specifications:

Motor (240V 50Hz): 2200W
Motor (110V 50Hz): 1600W
Speed No Load: 1550 min-1
Max. Bevel (Left): 45°
Cable Length: 3m
Blade Dia.: 355mm
No. of Teeth: 66
Bore: 25.4mm / 1 In.
Kerf: 2.4mm
Mild Steel Plate (Max Thickness): 12mm
Stainless Steel Plate (Max Thickness): 5mm
Square Tube at 90° (Mild Steel): 120 x 120mm
Square Tube at 45° (Mild Steel): 89 x 89mm
Rectangle Tube at 90° (Mild Steel): 95 x 180mm
Rectangle Tube at 45° (Mild Steel): 78 x 110mm
Round Tube at 90° (Mild Steel): Ø 130mm
Round Tube at 45° (Mild Steel): Ø 105mm
Minimum Cut Off Piece Length: 8 mm
Packaging Dimensions: 470 x 575 x 374mm
Product Dimensions: 410 x 530 x 310mm
Product Weight: 23.1 kg
Packaged Weight: 27 kg
Sound Pressure Level LPA: 94.9 dB(A)
K:3dB(A)
Sound Power Level LWA: 107.9 dB(A)
K=3 dB(A)
