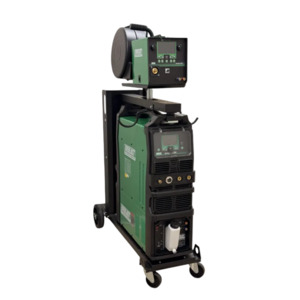

Cyclone 373DPi Advanced Pulse Mig Welding Machine

Machine Features

- Variable MIG Inductance
- Adjustable Stick Arc Force
- Double Pulse / Pulse-on-Pulse
- Fully Synergic PowerSet
- Separate Wire Feeder
- 4 Drive Roll Feed System
- Wire Feed Speed up to 17.8 m/min
- Accepts 300 mm wire spools
- Program Memory (30 presets)
- 2T / 4T Trigger Modes
- Water-cooled 510 Series Euro Torch

Material Capacity:

Steel & Stainless Steel

- Single-pass welding up to 11 mm
- Multi-pass welding over 19 mm
- Pulse welding down to approximately 0.4 mm sheet

Aluminium

Using the supplied water-cooled torch, PTFE liner and U-groove drive rolls:

- Single-pass welding up to 10 mm
- Multi-pass welding over 19 mm
- Pulse welding down to approximately 0.6 mm

For longer aluminium welding distances, a Push-Pull torch such as the Parker SG360A or Parker DSP360 is recommended.

MIG Brazing

- Minimum material thickness: 0.6 mm
- Practical maximum thickness: 5–6 mm

Stick Welding

- Electrode size: 1.6–4.0 mm

Generator Requirements

When operating from a generator, ensure it supplies clean, stable power with a Total Harmonic Distortion (THD) of 5% or less.

Recommended minimum generator capacity:

- 15.5 kVA peak output

Use of generators exceeding 5% THD or with insufficient output may damage the machine and void the warranty.

Always use correctly rated power cables and avoid undersized extension leads.

Power plug not included. Installation should be completed by a qualified electrician using the appropriate connector for the local three-phase supply.
