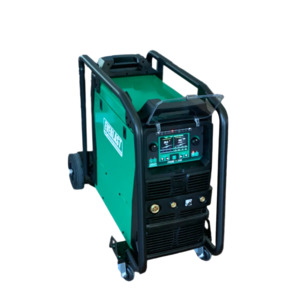

Everlast Cyclone 313Pi Pulse MIG Welder | 3 Phase
- Variable MIG inductance
- Adjustable Stick Arc Force
- Single Pulse MIG
- Synergic pulse control
- Integrated 4-roll wire drive
- Self-contained wire feeder
- Wire feed speed up to 15.2 m/min
- Accepts 300 mm wire spools
- 30 Program Memory
- Spool gun compatible
- Push-Pull gun compatible
- 2T / 4T trigger operation Welding Capacity Steel & Stainless Steel
- Minimum material thickness approximately 0.6–0.8 mm
- Single-pass welding up to 13 mm
- Multi-pass welding over 25 mm Aluminium
- Minimum material thickness approximately 2 mm
- Single-pass welding up to 10 mm
- Multi-pass welding over 25 mm
Actual welding capacity depends on material type, joint preparation, wire diameter, shielding gas, welding position and operator experience. Notes
- For best daily performance, select a welder with capacity comfortably above your typical material thickness rather than operating continually at its maximum output.
- Smaller wire diameters may require optional drive rolls, liners or MIG torches for optimum performance.
- Aluminium welding requires a PTFE liner together with U-groove drive rolls.
- For dedicated use with 0.6 mm or 0.8 mm wire, a smaller MIG torch may provide improved wire feeding performance.
- Extended or dedicated gasless flux-cored welding is best performed using a dedicated flux-cored MIG torch.
- Power plug not included. Installation should be completed by a qualified electrician using the appropriate connector for the local three-phase supply.
