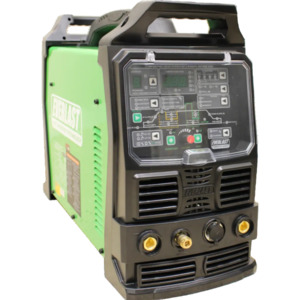

Everlast PowerTIG 325EXT AC/DC TIG Welder | 3 Phase 480V
The Everlast PowerTIG 325EXT is built for superior industrial performance. Featuring digital microprocessor-controlled IGBT inverter technology and up to 320 amps of TIG welding power, the 325EXT delivers exceptional welding performance across aluminium, stainless steel, mild steel, and exotic materials.
Designed for serious fabrication environments, the PowerTIG 325EXT combines advanced AC and DC TIG with extensive adjustment controls, allowing fabricators to fine tune arc characteristics for maximum weld quality and precision.
One of the standout features is Advanced AC Pulse, which increases penetration when welding aluminium while helping reduce heat input, distortion, and burn through on thinner materials. Waveform control, AC frequency adjustment, and AC balance controls provide exceptional control over arc performance.
- Now with HV Start. This is an advanced type of HF arc start with electronic control rather than older point gap style starts that required maintenance.
- Now with Fan-On-Demand. The fan now runs when it is needed, starting on arc start and terminating as the welder cools down enough after the arc stops.
Key Features:
• Digital microprocessor control
• Reliable IGBT power modules
• AC/DC TIG and Stick welding capability
• Welds from 5A DC and 10A AC
• 2T, 4T and foot pedal operation
• 4 AC waveforms: Sine, Triangular, Soft Square & Advanced Square
• Solid-state High Frequency start for reliable arc starts
• Simple, easy-to-use control panel
• Easy Start mode for fast setup
• Pulse frequency up to 500Hz DC and 250Hz AC
• Advanced AC Pulse for improved penetration and heat control
• Adjustable Arc Force and Hot Start for Stick welding
• VRD safety function
• Fan-On-Demand cooling system
• 480V 3 Phase input power
• Industrial-duty performance and reliability What's Included:
- 9 series Air-Cooled TIG Torch with 12.5 ft. cables and 35 Dinse connector
- 20 series Water-Cooled TIG Torch with 12.5 ft. cables and 35 Dinse connector
- 2x Torch Switch TIG with 12.5 ft. cable and 7 Pin female plug for 2T/4T operation
- Stick Electrode Holder with 10 ft. cable and 35 Dinse connector
- Ground Clamp with 10 ft. cable and 35 Dinse connector
- Power Pedal TIG Deluxe 22K
- RH-191 Argon Regulator with Hose
- 6 ft. Input Power Cable (plug not included)
- Starter TIG Consumable Kit (tungsten not included)
Tech Specifications:
- IGBT Type: Module IGBT
- Inverter Type: Digital/Micro-controlled
- Output Type: AC/DC TIG, DC Stick
- Voltage/phase: 480 V 3 PHASE (AVAILABLE AS OPTION)
- Max Rated TIG Amps: 325A
- Max Rated Stick Amps: 250A
TIG Amps @ Rated Duty Cycle:
- 325A/22.9V @ 35% Duty Cycle/ 40º C
- 245A/19.8V @ 60% Duty Cycle/ 40º C
- 190A/17.6V @ 100% Duty Cycle/ 40º C
Stick Amps @ Rated Duty Cycle:
- 250A/30V @ 35% Duty Cycle/ 40º C
- 200A/28V @ 60% Duty Cycle/ 40 º C
- 160A/ 26.4V @ 100% Duty Cycle/ 40 º C
- Max Inrush ( I1MAX ) Amps: 14A @ 480V 3 phase
- Maximum Rated (I1EFF ) Input Amps: 14A @ 460V 3ph
- OCV: 70V (
